SELF-CENTERING HOLDERS




TOOL #

KNURL

KNURL PIN

A

B

C

E

F

G

PRICE

OR 2EP08P

EP

C 083

.500

1.40

4.4

1.62

.70

.80

$140

OR 2EP10P

EP

C 083

.625

1.40

4.4

1.62

.70

.80

 140

OR 2GK10P

GK, KN

C 104

.625

1.50

4.5

1.75

.80

.93

 150

OR 2GK12P

GK, KN

C 104

.750

1.50

4.5

1.75

.80

.93

 150

OR 2KP12P

KP

C 124

.750

1.75

5.0

1.95

.97

1.12

 160

OR 2KP16P

KP

C 124

1.00

1.75

5.0

1.95

.97

1.12

 160

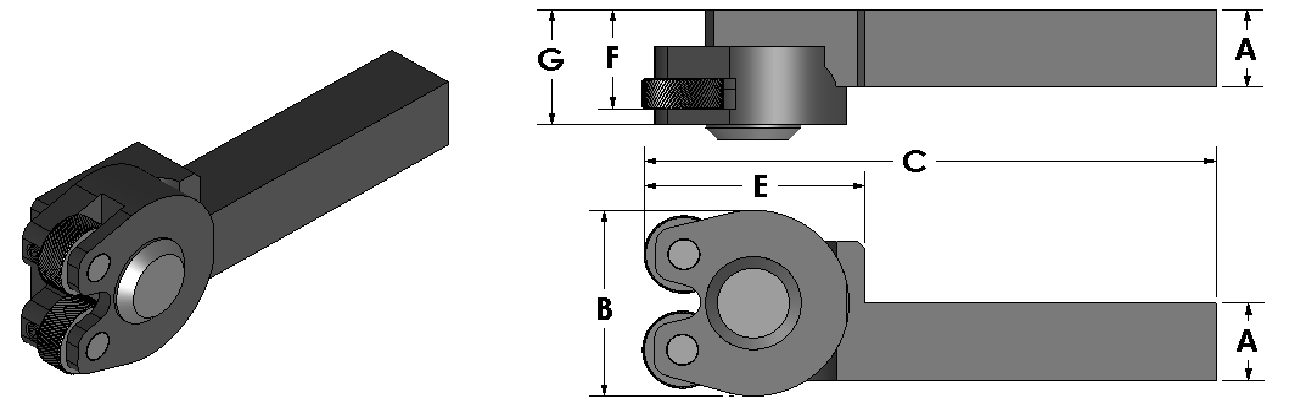

Self-centering Holders are suitable for knurling diamond patterns in CNC or manual lathes. The pivoting head floats to align with the part to be rolled. This popular type of tool is simple to use and is adequate for many applications. A carbide pin and hex wrench are included. Knurls are not included.
NOTE: The adjustable straddle types (previous pages) have an advantage that should be considered - adjusting the knurls to contact the work top and bottom greatly reduces side pressure. This reduces the load on the lead-screw on your machine, and allows rolling longer parts.
