"PH" Series Circular Pitch Knurls
|
|||||||
|
Included Tooth Angle
|
Pitch Inch/Metric
|
Steel Type
|
|
|
|
|
|
|
Straight
|
30° LH Diagonal
|
30° RH Diagonal
|
30° Male
|
30° Female
|
|||
|
90º
|
12 TPI / 2.12mm
|
HSS
|
PHS 212
|
-
|
|||
|
Hi-Cobalt
|
PHSX212
|
-
|
|||||
|
90º
|
14 TPI / 1.81mm
|
HSS
|
PHS 214
|
PHL 214
|
PHR 214
|
-
|
-
|
|
Hi-Cobalt
|
PHSX214
|
PHLX214
|
PHRX214 |
-
|
-
|
||
|
90º
|
16 TPI / 1.59mm
|
HSS
|
PHS 216
|
PHL 216
|
PHR 216
|
PHM 216
|
PHF 216
|
|
Hi-Cobalt
|
PHSX216
|
PHLX216
|
PHRX216
|
PHMX216
|
PHFX216
|
||
|
90º
|
20 TPI / 1.27mm
|
HSS
|
PHS 220
|
PHL 220
|
PHR 220
|
PHM 220
|
PHF 220
|
|
Hi-Cobalt
|
PHSX220-
|
PHLX220
|
PHRX220
|
PHMX220
|
PHFX220
|
||
|
90º
|
25 TPI / 1.02mm
|
HSS
|
PHS 225
|
PHL 225
|
PHR 225
|
PHM 225
|
PHF 225
|
|
Hi-Cobalt
|
PHSX225
|
PHLX225
|
PHRX225
|
PHMX225
|
PHFX225
|
||
|
90º
|
30 TPI / 0.85mm
|
HSS
|
PHS 230
|
PHL 230
|
PHR 230
|
PHM 230
|
PHF 230
|
|
Hi-Cobalt
|
PHSX230
|
PHLX230
|
-
|
PHMX230
|
-
|
||
|
90º
|
40 TPI / 0.64mm
|
HSS
|
PHS 240
|
-
|
|||
|
Hi-Cobalt
|
PHSX240
|
-
|
-
|
-
|
-
|
||
|
"PH" Series Diametral Pitch Knurls
|
|||||||
|
Included Tooth Angle
|
Pitch
|
Steel Type
|
|
|
|
|
|
|
Straight
|
30° LH Diagonal
|
30° RH Diagonal
|
30° Male
|
30° Female
|
|||
|
80º
|
064 DP
|
HSS
|
PHS 064
|
PHL 064
|
PHR 064
|
-
|
-
|
|
Hi-Cobalt
|
PHSX064
|
-
|
-
|
-
|
-
|
||
|
80º
|
096 DP
|
HSS
|
PHS 096
|
PHL 096
|
PHR 096
|
PHM 096
|
PHF 096 |
|
Hi-Cobalt
|
PHSX096
|
-
|
-
|
-
|
-
|
||
*D.P.= Diametral Pitch Knurls (064, 096, 128, & 160 only). Made to insure tracking on fractional size stock from the x-slide.
All Diametral Pitch Knurls made to American Standards (ASA B5.30 1958). Diametral Pitch Knurls produce the D.P. number of teeth per inch of diameter. Rolled Circular Pitch Knurls, produce the TPI number of teeth per inch of circumference measured normal to the teeth.
| Net Prices are per knurl ** Quantity shown, ** Quantity price may be obtained by totaling any combination of stock knurls. |
| SERIES |

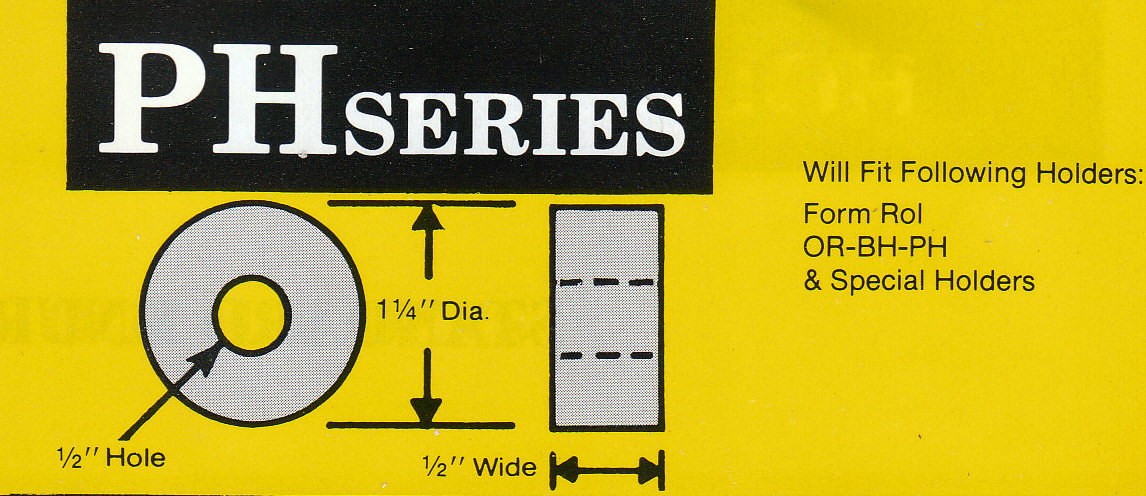

KNURL SIZE DIA.\WIDTH\HOLE |
KNURL TOOTH PATTERN | KNURL SYSTEM |
** QUANTITIES (PCS.) |
|||||
| 1-5 | 6-9 | 10-19 | 20-49 | 50-99 | 100+ | ||||
| PH | 1-1/4 X 1/2 X 1/2 | Straight, Diagonal | Circ. Pitch | $32.70 | $28.80 | $25.50 | $23.55 | $21.90 | $21.25 |
| Straight, Diagonal | D.P. | $41.85 | $36.85 | $32.65 | $30.15 | $28.05 | $27.20 | ||
| Diamond, Male/Fem. | Circ. Pitch | $43.80 | $38.55 | $34.15 | $31.55 | $29.35 | $28.45 | ||
| Diamond, Male/Fem. | D.P. | $56.90 | $50.05 | $44.40 | $40.95 | $38.10 | $37.00 | ||
| PHX | 1-1/4 X 1/2 X 1/2 | Straight, Diagonal | Circ. Pitch | $42.55 | $37.45 | $33.20 | $30.65 | $28.50 | $27.65 |
| Straight, Diagonal | D.P. | $49.40 | $43.45 | $38.55 | $35.55 | $33.10 | $32.10 | ||
| Diamond, Male/Fem. | Circ. Pitch | $57.85 | $50.90 | $45.10 | $41.65 | $38.75 | $37.60 | ||
| Diamond, Male/Fem. | D.P. | $73.60 | $64.75 | $57.40 | $53.00 | $49.30 | $47.85 | ||
| Knurls stocked FULL FACE * Beveled up to 1/16 as required $1.00 EA. |
|
||||||
| Price for shoulder on any stock knurl (To be added to stock price) | Quantity | 1 | 2 | 3-5 | 6-9 | 10-19 | 20+ |
| Price for shoulder | $26.85 | $18.70 | $13.80 | $9.50 | $6.05 | $4.05 | |
