Angular Bump Holders
Bump Holders Straddle Holders Internal Holders Face Holders Turret Mounted Holders Self-Centering Holders Angular Bump Holders Conical Holders Synch. Rolling Heads

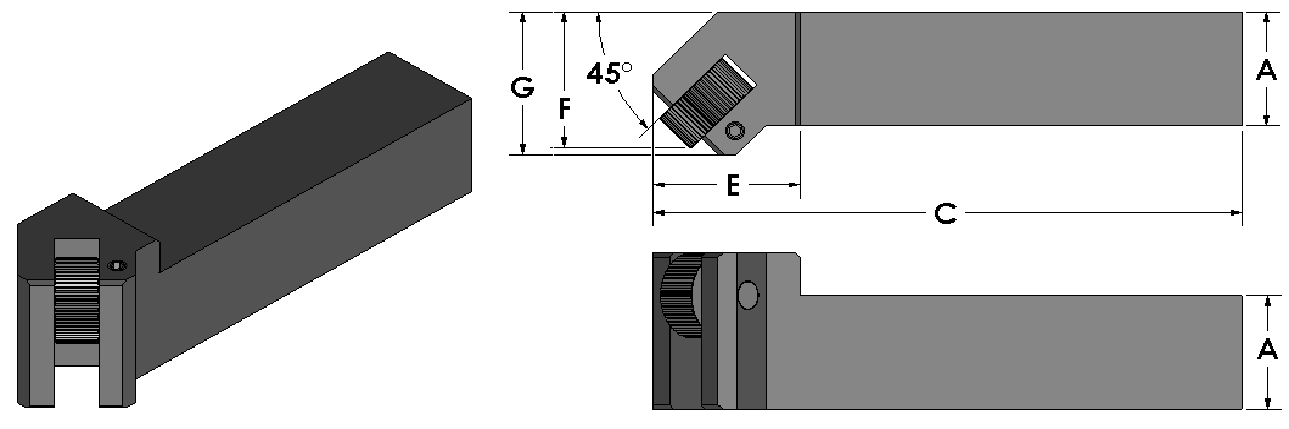

ANGULAR BUMP HOLDERS








TOOL #

KNURL

KNURL PIN

A

C

E

F

G

PRICE

OR BA4512

KP

C 164

.750

4.5

1.25

1.2

1.25

 $135

OR BA4516

KP

C 164

1.00

5.0

1.25

1.2

1.25

155

These holders are for knurling on a chamfer. They will work fine if the chamfer is small. If the knurl band is wide, it may be hard to get a clean pattern because the knurl pitch must change as the diameter changes. If required, a special conical knurl and holder can be supplied. A carbide pin and hex wrench are included. Knurl is not included.
